Description:Specifications
Main Specifications

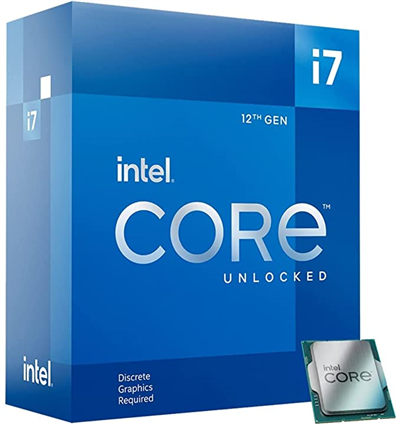

Product Description Intel Core i7 12700 / 2.1 GHz processor
Product Type Processor
Processor Type Intel Core i7 12700 (12th Gen)
Number of Cores 12-core / 20 threads
Cache 25 MB
Integrated Graphics Intel UHD Graphics 770
Processor Qty 1
Clock Speed 2.1 GHz (P-core) / 1.6 GHz (E-core)
Max Turbo Speed 4.9 GHz (P-core) / 3.6 GHz (E-core)
Manufacturing Process 10 nm
Features Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Turbo Boost Max Technology 3.0, Intel Speed Shift Technology, Intel Optane Memory Supported, Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel Control-Flow Enforcement Technology, Intel Gaussian and Neural Accelerator 3.0, Intel Thread Director, Instruction Set 64-bit
Manufacturer Warranty 3-year warranty
General
Product Type Processor
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Miscellaneous
Package Type Intel Boxed
Processor
Type / Form Factor Intel Core i7 12700 (12th Gen)
Number of Cores 12-core
Number of Threads 20 threads
Cache 25 MB
Cache Memory Details L3 - Smart Cache - 25 MB ¦ L2 - 12 MB
Processor Qty 1
Clock Speed 2.1 GHz (P-core) / 1.6 GHz (E-core)
Max Turbo Speed 4.9 GHz (P-core) / 3.6 GHz (E-core)
Manufacturing Process 10 nm
Thermal Design Power 180 W
Thermal Specification 100 °C
PCI Express Revision 4.0/5.0
PCI Express Configurations 1x16+4, 2x8+4
PCI Express Lanes Qty 20
Architecture Features Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Turbo Boost Max Technology 3.0, Intel Speed Shift Technology, Intel Optane Memory Supported, Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel Control-Flow Enforcement Technology, Intel Gaussian and Neural Accelerator 3.0, Intel Thread Director, Instruction Set 64-bit
Integrated Graphics
Type Intel UHD Graphics 770
Base Frequency 300 MHz
Max Dynamic Frequency 1.5 GHz
Max Supported Resolution 5120x3200@120Hz (eDP), 7680x4320@60Hz (DP), 4096x2160@60Hz (HDMI)
Features Intel Clear Video HD Technology, Intel Quick Sync Video, Quad Display Capable
