Description:Main Specifications

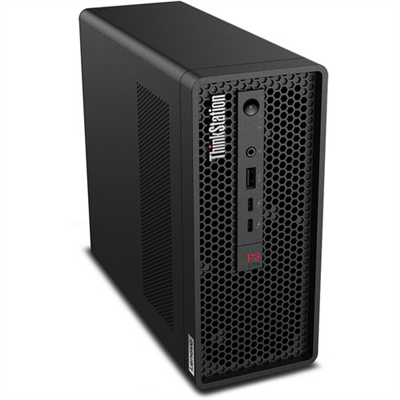

Product Description Lenovo ThinkStation P3 Ultra - MT - Core i7 13700 2.1 GHz - vPro Enterprise - 32 GB - SSD 1 TB - English
Type Workstation - mini tower
Bundled Services 3 Years Lenovo Premier Support
Platform Technology Intel vPro Enterprise
Localization Language: English / region: United States
Processor 1 x Intel Core i7 (13th Gen) 13700 / 2.1 GHz (5.2 GHz) (16-core)
Processor Socket FCLGA1700 Socket
Cache Memory 30 MB
Cache Per Processor 30 MB
RAM 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC
Storage Controller SATA (SATA 6Gb/s); RAID (PCI Express (NVMe))
Hard Drive SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe), Performance
Optical Storage No optical drive
Multi-GPU Configuration 1 single GPU card / integrated GPU
Graphics Controller NVIDIA RTX A2000 / Intel UHD Graphics 770
Video Memory 12 GB GDDR6 SDRAM
Networking GigE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5 GigE, Bluetooth 5.1, 802.11ax (Wi-Fi 6E)
Keyboard English
Power (50/60 Hz)
OS Provided Windows 11 Pro
Dimensions (WxDxH) 3.4 in x 8.8 in x 8 in
Weight 7.94 lbs
Manufacturer Selling Program TopSeller
Environmental Standards ENERGY STAR Qualified EPEAT Gold
Manufacturer Warranty Base warranty - 3 years - on-site ¦ Extended warranty - 3 years - on-site - response time: next business day
General
Platform Technology Intel vPro Enterprise
Type Workstation
Bundled Services 3 Years Lenovo Premier Support
Product Form Factor Mini tower
Built-in Devices Speaker
Embedded Security Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization Language: English / region: United States
Expansion / Connectivity
Slots 1 (total) / 0 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (x4 mode) ¦ 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD)
Interfaces 5 x USB 3.2 Gen 2 (1 front, 4 rear) ¦ 2 x Thunderbolt 4 (2 in front) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 3 x DisplayPort 1.2 (3 rear) ¦ 4 x Mini DisplayPort 1.4a
Manufacturer Warranty
Service & Support Base warranty - 3 years - on-site ¦ Extended warranty - 3 years - on-site - response time: next business day
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately), chassis intrusion switch
Security Slot Type Kensington security slot
Compliant Standards RoHS, TCG Certified, MIL-STD-810H, TCO Certified 9.0
Manufacturer Selling Program TopSeller
RAM
Installed Size 32 GB / 128 GB (max)
Technology DDR5 SDRAM - non-ECC
Effective Memory Speed 4800 MHz
Rated Memory Speed 4800 MHz
Form Factor SO-DIMM 262-pin
Slots 4 (total) / 3 (empty)
Features Dual channel memory architecture
Configuration Features 1 x 32 GB
Networking
Interface (Bus) Type M.2 Card
Ethernet Ports 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet
Ethernet Controller Intel I225-LM, I210-AT
Wireless LAN Supported Yes
Wireless NIC Intel Wi-Fi 6E AX 211
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6E)
Features Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16
Power
Device Type Power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 300 Watt
Efficiency 90%
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Cache Memory
Installed Size 30 MB
Cache Per Processor 30 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Multi-GPU Configuration 1 single GPU card / integrated GPU
Graphics Processor NVIDIA RTX A2000 / Intel UHD Graphics 770
Video Memory 12 GB GDDR6 SDRAM
Video Interfaces DisplayPort, Thunderbolt
Audio Output
Compliant Standards High Definition Audio
Operating System / Software
OS Provided Windows 11 Pro English
Storage Controller (2nd)
Type 1 x RAID
Controller Interface Type PCI Express (NVMe)
RAID Level RAID 0, RAID 1
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 1 TB
Interface Type PCI Express 4.0 x4
Features TCG Opal Encryption, NVM Express (NVMe), Performance
Input Device
Type Mouse, keyboard
Dimensions & Weight
Width 3.4 in
Depth 8.8 in
Height 8 in
Weight 7.94 lbs
Keyboard
Keyboard Name Lenovo Traditional Keyboard
Interface USB
Localization & Layout English
Mouse
Mouse Name Lenovo Calliope Mouse
Interface USB
Environmental Standards
EPEAT Compliant EPEAT Gold
ENERGY STAR Certified Yes
ENERGY STAR Version 8.0
Processor / Chipset
CPU Intel Core i7 (13th Gen) 13700
Clock Speed 2.1 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed 5.2 GHz (P-core) / 4.1 GHz (E-core)
Number of Cores 16-core
CPU Qty 1
Max CPU Qty 1
CPU Socket FCLGA1700 Socket
Chipset Type Intel W680
