Description:Main Specifications

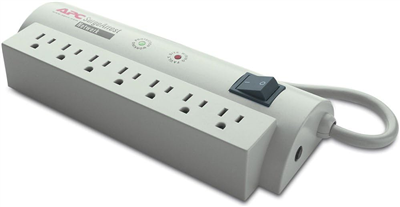

Product Description APC SurgeArrest Network - surge protector
Device Type Surge protector - external
Weight 1.98 lbs
Input Voltage AC 120 V
Input Connectors 1 x power NEMA 5-15
Output connectors 7 x power NEMA 5-15
Color Beige
Dimensions (WxDxH) 4.3 in x 10.5 in x 2 in
Manufacturer Warranty Limited lifetime warranty
Designed For P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6
General
Device Type Surge protector - external
Color Beige
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Miscellaneous
Equipment Protection Value 100000 US Dollars
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Min Storage Temperature 5 °F
Max Storage Temperature 113 °F
Humidity Range Operating 0 - 95%
Humidity Range Storage 0 - 95%
Power Device
Input Voltage AC 120 V
Frequency Required 50/60 Hz
Input Connectors 1 x power NEMA 5-15
Power Output Connectors Details 7 x power NEMA 5-15
Surge Suppression Yes
Surge Response Time 0 ns
Surge Energy Rating 480 Joules
EMI/RFI Noise Filtration 70 dB
Circuit Protection Circuit breaker
Compliant Standards CSA, UL 1363, UL 1449, UL 1283
Dimensions & Weight
Width 4.3 in
Depth 10.5 in
Height 2 in
Weight 1.98 lbs
Compatibility Information
Designed For P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6
