Description:Main Specifications

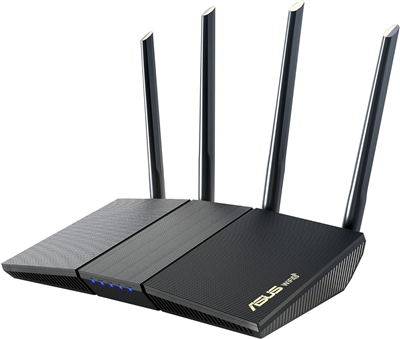

Product Description ASUS RT-AX1800S - wireless router - Wi-Fi 6 - desktop
Device Type Wireless router - 4-port switch (integrated)
Enclosure Type Desktop
WAN Ports Qty 1
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Frequency Band 2.4 GHz / 5 GHz
Data Transfer Rate 1800 Mbps
Performance Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
Network / Transport Protocol PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6
Intelligent Assistant Alexa ready
Remote Management Protocol SSH
Features WOL, repeating mode, MAC address filtering, parental control, Access Point operational mode, QoS, dual WAN connection, DHCP server, static IP mode, port forwarding, wireless bridge mode, reset button, bandwidth control, dynamic IP mode, ASUSWRT, system log, beamforming technology, Wireless Scheduler, ASUS Router App, Airtime Fairness, DMZ support, traffic monitoring, ASUS AiMesh, ASUS AiProtection Classic, 2x2 MIMO technology, OpenVPN client, PPTP VPN client, OFDMA, OpenVPN server, IPTV support, WPS button, Guest Network, AiMesh node mode, Let's Encrypt, TWT, dual core CPU, L2TP VPN client, IPSec VPN server, PPTP VPN server, malicious site blocking
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Power AC 110-240 V (50/60 Hz)
General
Device Type Wireless router - 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Frequency Band 2.4 GHz / 5 GHz
Data Transfer Rate 1800 Mbps
Performance Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
Network / Transport Protocol PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6
Remote Management Protocol SSH
Encryption Algorithm WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPS, WPA3-Personal
Authentication Method RADIUS
Wi-Fi Rating AX1800
Features WOL, repeating mode, MAC address filtering, parental control, Access Point operational mode, QoS, dual WAN connection, DHCP server, static IP mode, port forwarding, wireless bridge mode, reset button, bandwidth control, dynamic IP mode, ASUSWRT, system log, beamforming technology, Wireless Scheduler, ASUS Router App, Airtime Fairness, DMZ support, traffic monitoring, ASUS AiMesh, ASUS AiProtection Classic, 2x2 MIMO technology, OpenVPN client, PPTP VPN client, OFDMA, OpenVPN server, IPTV support, WPS button, Guest Network, AiMesh node mode, Let's Encrypt, TWT, dual core CPU, L2TP VPN client, IPSec VPN server, PPTP VPN server, malicious site blocking
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
RAM 256 MB
Flash Memory 128 MB
Status Indicators Power, WAN, LAN, 5 GHz, 2.4 GHz
Expansion / Connectivity
Interfaces WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
Cables Included 1 x network cable
Power
Power Device External power adapter
Voltage Required AC 110-240 V (50/60 Hz)
Antenna
Antenna External detachable
Antenna Qty 4
Line Properties
Line Coding Format 1024 QAM, OFDMA
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Intelligent Assistant Alexa ready
